Geometry
Top Tube Length: 23"
Rear End Length: 17.46"
Head Tube Angle: 72°
Seat Tube Angle: 73°
BB Height: 13"
Standover: 14"
Frame: 100% Chromoly
Fork: 100% Chromoly, 33 mm Offset, Tapered Legs
Bar: 100% Chromoly, 7" rise, 29" width, 4-piece
Stem: FIT Forged Top Load, 50 mm reach
Headset: Integrated, sealed bearings
Grips: FIT Longtech
Brake Mounts: Welded
Rear Brake: V-Brake
Brake Lever: V-Brake Lever
Brake Cable: Slic
Gearing: 36/16, RHD

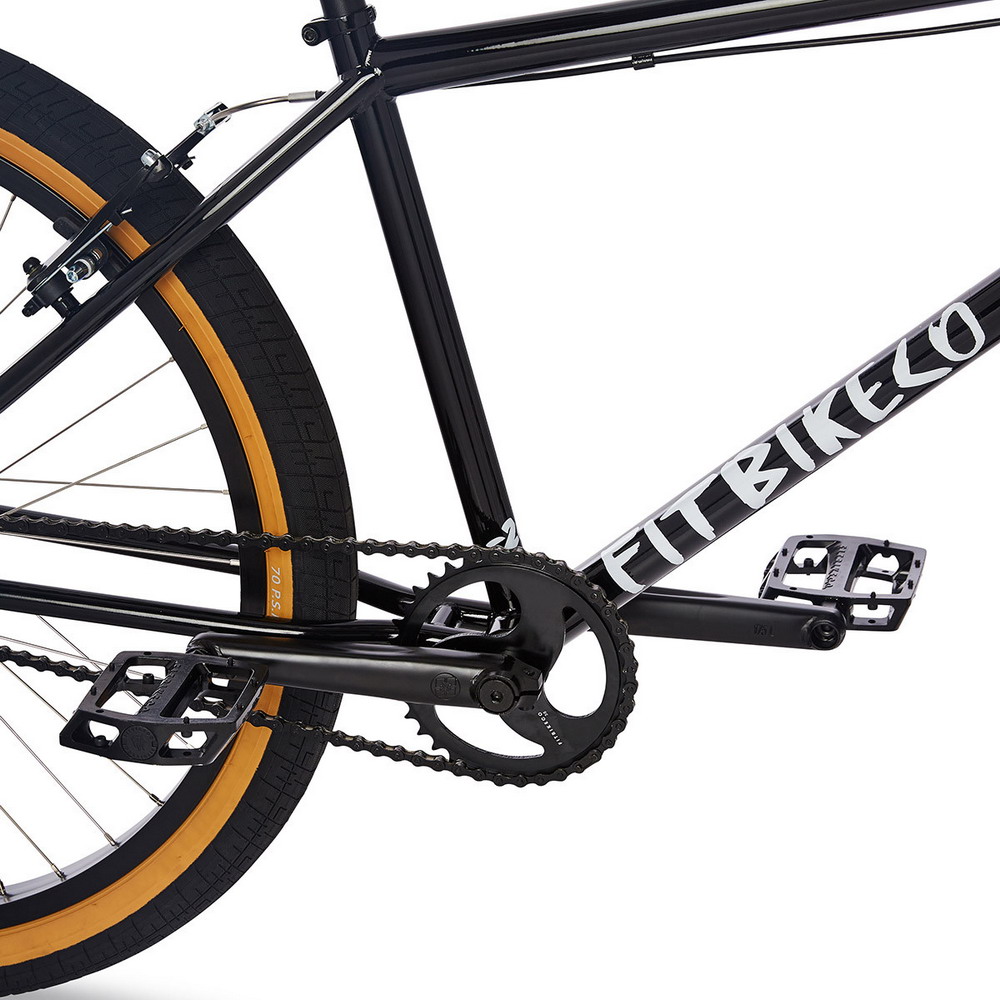

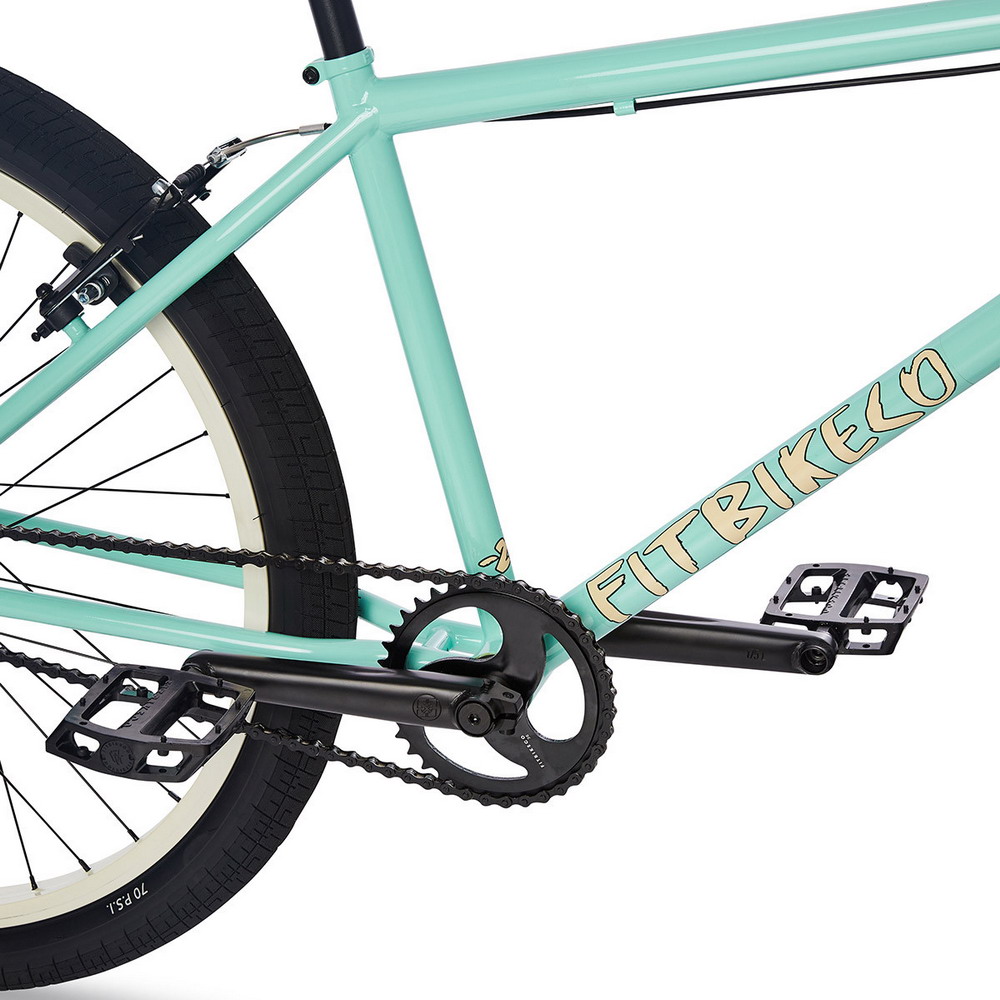

Cranks: Tubular Chromoly, 175 mm length, RHD
Bottom Bracket: Mid, sealed bearing
Sprocket: FITSaw 36T, CNC machined aluminium
Pedals: FIT Mac alloy
Chain: KMC S1
Front Hub: sealed Female hub, 10 mm axle
Rear Hub: sealed bearings, 14 mm axle, RHD, 16t free wheel
Rims: FIT OEM 26", 36H, double wall, alloy
Tires: S&M Speedball 26" x 2.4", 110 psi
Seat: S&M Sharpie Shield Railed
Seat Post: Railed, Micro Adjust, 300 mm length
Seat Clamp: integrated
Weight: 14.47 kg
