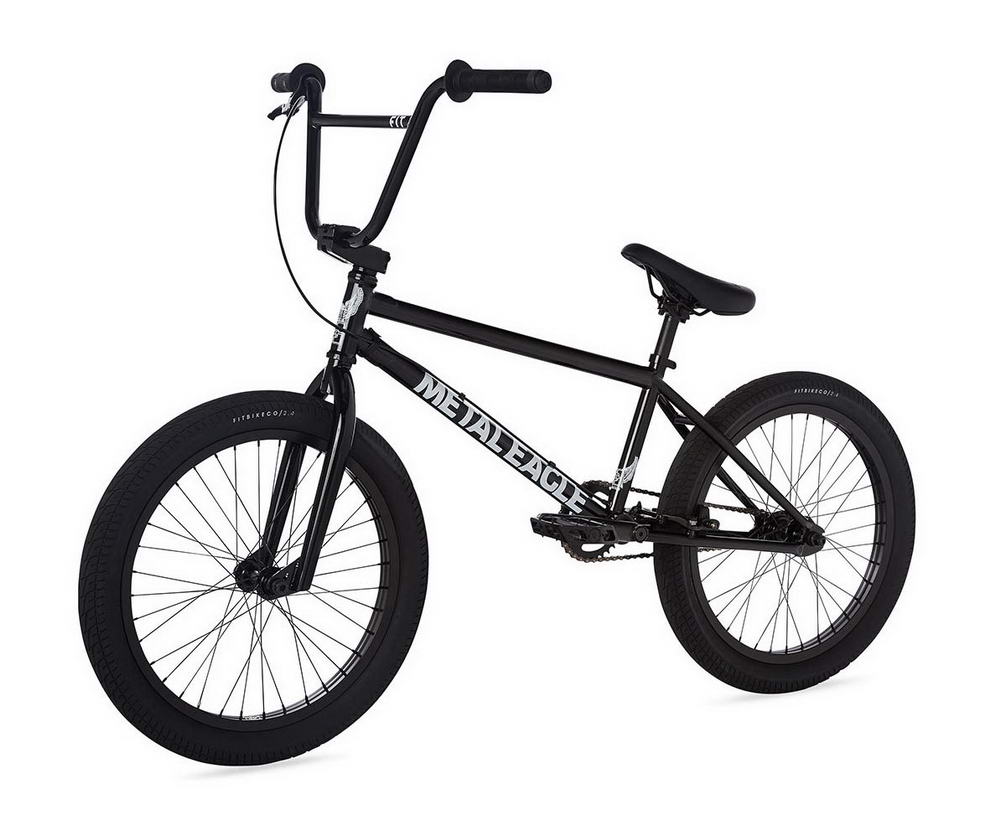

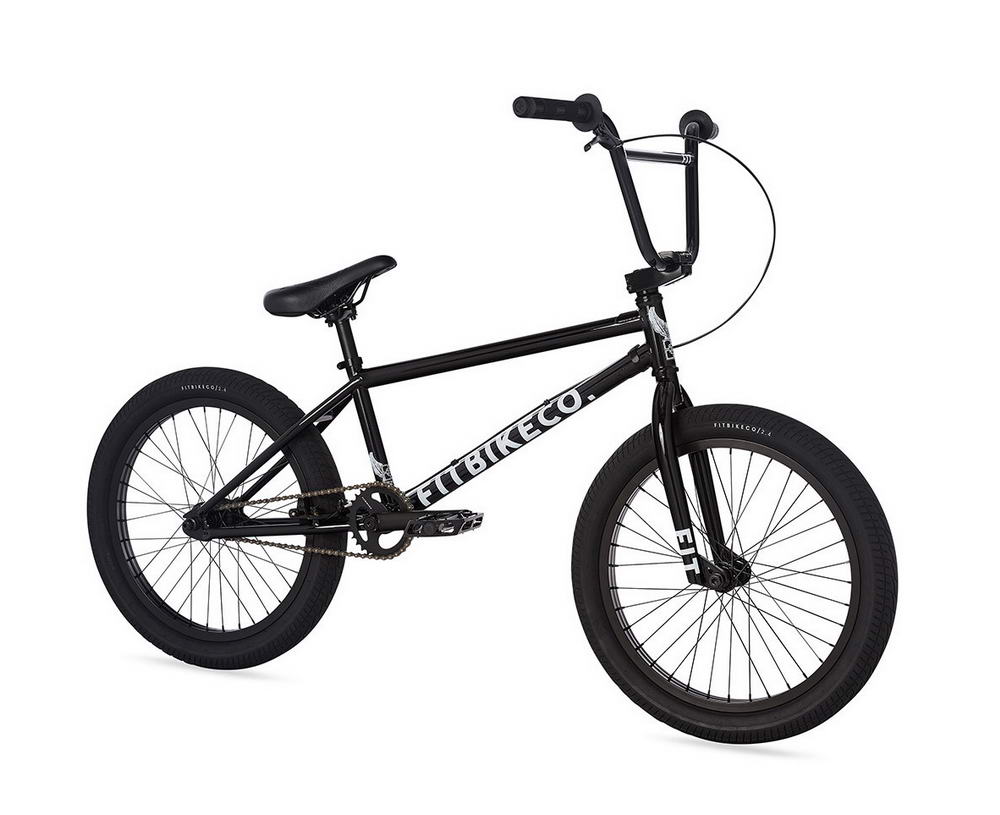

Down & dirty. The Fit TRL Nastazio “Metal Eagle” is a lean, mean machine for the dirt, bowls or any terrain you can go fast and blast, inspired by Fit Pro Cory “Nasty” Nastazio. Cory’s personal style is black & bold, so his signature complete is “murdered out” in all black with Cory’s righteous Metal Eagle graphics. The TRL features our stretched and stable frame with a 21" top tube and a 74.5 degree head tube angle to keep you in control in the air, on your way up and coming back down. Big 9 X 29" bars and a top load stem give you something to believe in, with a railed S&M Shield Sharpie seat and post for solid seating. A 30/10 gear setup and 175mm chromoly cranks are intended for full speed assaults. Sealed bearings all around, a double-wall rear rim and FIT 20 X 2.4" tires hold their ground. Riding dirt is the essence of BMX, and Nasty’s bike is ready for the challenge.
Geometry
Top Tube Length: 21"
Rear End Length: 13.8"
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
BB Height: 11.35"
Standover: 9.15"
Frame: Chromoly top, down and head tube
Fork: Chromoly Steerer Tube, 33 mm Offset, Tapered Legs
Bar: 2-piece 9" rise, 29" width, 11° back sweep, 2° up sweep
Stem: FIT Forged Top Load, 50 mm reach
Headset: Integrated, sealed bearings
Grips: FIT Longtech
Brake Mounts: Welded
Rear Brake: U-Brake
Brake Lever: 2-finger
Brake Cable: Linear
Gearing: 30/10 RHD
Cranks: Tubular Chromoly, 175 mm length, RHD
Bottom Bracket: Mid, sealed bearing
Sprocket: FIT Saw 30T
Pedals: Fit Alloy
Chain: KMC S1
Front Hub: sealed bearings, Female hub with 10 mm axle bolts
Front Rim: FIT S1W, 36H, single wall, alloy
Rear Hub: Cassette, sealed bearings, 14 mm axle, RHD
Rear Rim: FIT OEM, 36H, double wall, alloy
Tires: FIT OEM 20" x 2.4"
Seat: S&M Shield Railed
Seat Post: Railed, Micro Adjust, 300 mm length
Seat Clamp: alloy, 28.6 mm inner diameter
Misc: Chainstay mounted brake
Weight: 12.20 kg
