Frame S&M Dagger

Frame S&M Dagger

Product No.:: 113694-28
Shipping time:: on request (abroad may vary)

color:

This combination is not in stock.
The quantity entered will be supplied by us very soon.

top tube length:

This combination is not in stock.
The quantity entered will be supplied by us very soon.

UVP 666,66 EUR
666,66 EUR per Stk.

incl. 19% tax excl. Shipping costs

Add to wish list

Description

Description

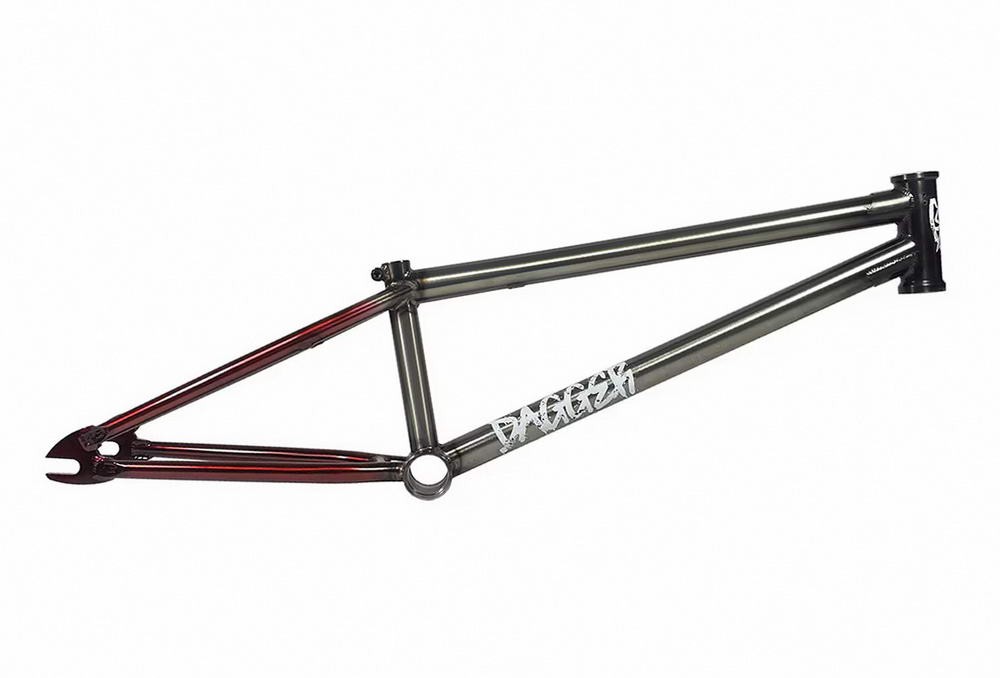

Our ultra-responsive park frame. With a low standover and BB, 75.3° head angle and short rear end with chain tensioners, the Dagger is compact and nimble.

Made in USA
Top Tube Lengths: 19", 19.5", 20.5", 20.75", 21"
Rear End Length: 12.8"- 13.6"
Head Tube Angle: 75.3°
Head Tube Style: Integrated (45°/45°, 41.8mm), with Gyro holes
Seat Tube Angle: 71°
Seat Clamp: Integrated
Seat Post Size: 1" (25.4mm)
BB Height: 11.6"
BB Style: Mid
Standover Height: 7.25"
Brake Mounts: Thread-On 990 Mounts (not included, sold separately)
Dropouts: 14mm Slot, 4Q-Baked, integtrated Chain Tensioners
Gyro Tabs: Removable (not included, sold separately)
Weight: 2.22kg (20.5")
Tube Set: Double Butted True Temper 4130 crmo
