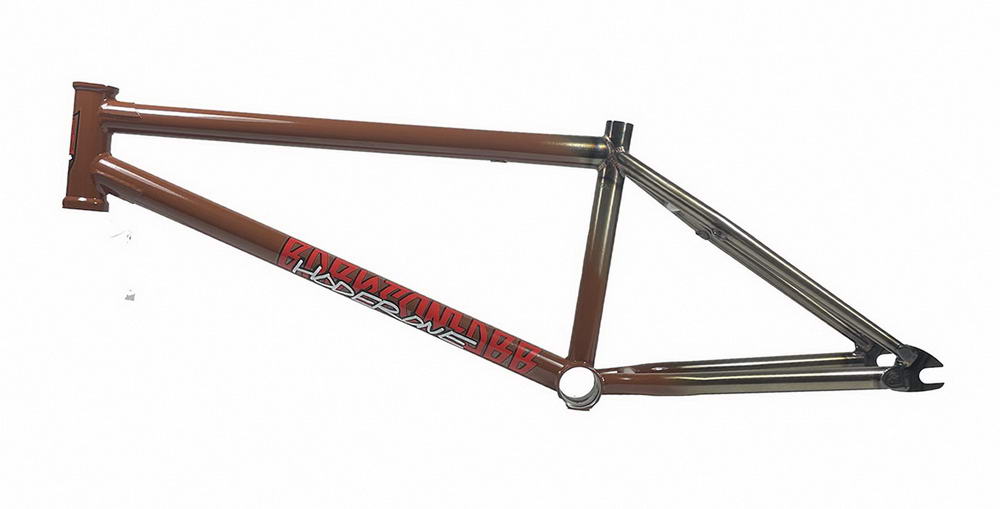

Frame S&M BTM XL Hoder Signature

Mike Hoder’s signature frame with an extra long 5" headtube and higher standover height.

Made in USA
Tube Set: Butted Thermal-X, 4130 Chromoly
Top Tube Length: 21", 21.25", 21.5"
Rear End Length: 13.05" - 13.50"
Head Tube Angle: 75°
Head Tube Style: 5" (127 mm) long, for integrated headsets (45°/45°, 41.8mm)
Seat Tube Angle: 71°
Seat Clamp: Slotted for traditional clamp (sold separately)
Seat Post Size: 1" (25.4 mm)
BB Height: 11.5"
BB Style: Mid BB
Standover Height: 9.50"
Brake Mounts: Thread-On 990 Mounts (sold separately)
Dropouts: 14 mm Slot, 4Q-Baked
Gyro Tabs: None (gyro cannot be mounted)
Weight: 2.45 kg

Also available in Edwin's colorway (Blue Groove): S&M Hoder bars High and Skyhigh. Widemouth forks with 33mm drops.
