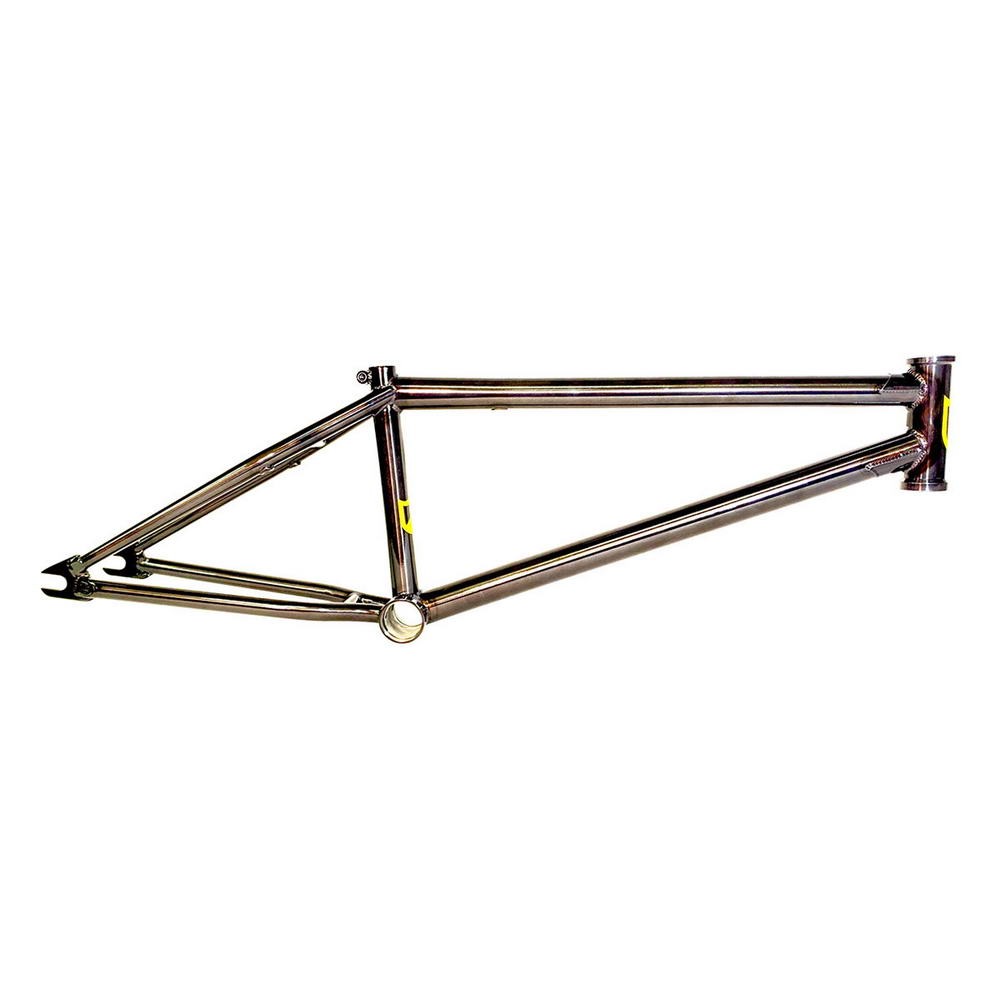

Frame S&M ATF XL

Product No.:: 115824-6
Shipping time:: in stock, ready to ship

color:

This combination is not in stock.
The quantity entered will be supplied by us very soon.

top tube length:

This combination is not in stock.
The quantity entered will be supplied by us very soon.

UVP 699,95 EUR
699,95 EUR per Stk.

incl. 19% tax excl. Shipping costs

Add to wish list

Description

Description

21 & up. The ATF XL takes the tried & true ATF frame to the next level. With a taller 5" head tube, 9" standover and extended top tube sizes up to 22", it's built for the tall team. The perfect blend of responsiveness and stability, ready for action on all terrains.

Made in USA
Top Tube Lengths: 21", 21.25", 21.5", 22"
Rear End Length: 13.4"
Head Tube Angle: 75°
Head Tube Style: Integrated (45°/45°, 41.8mm)
Seat Tube Angle: 71°
Seat Clamp: Integrated
Seat Post Size: 1" (25.4mm)
BB Height: 11.7"
BB Style: Mid
Standover Height: 9"
Brake Mounts: Thread-On 990 Mounts (not included, sold separately)
Dropouts: 14mm Slot, 4Q-Baked
Gyro Tabs: None
Weight: 2.15 kg
Tube Set: Butted True Temper Super Therm Tubing
