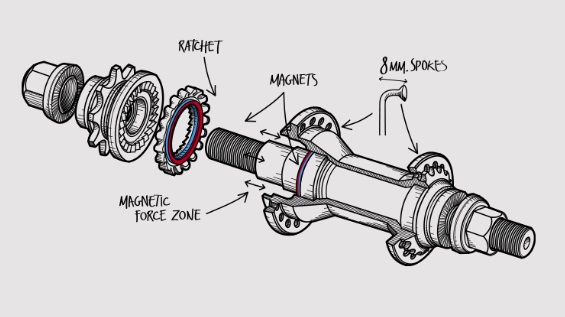

"The Magneto Cassette hub features a magnetic system engage using the force of two magnets that allows the ratchet ring to engage. The magnetic field provides an even repelling force which makes the ratchet to work completely straight and are created in a way that reduces friction compared to the use of springs.The Neomidium magnets we use maintain the magnetic field pretty much forever, as well. These properties creates the fastest, most reliable and durable system possible. Not to mention, a pretty unique and powerful noise...
The simplicity of the system is also great for customization. With ONLY ONE moving part, the assembly is as easy as it can get and reduces the overall weight significantly.
We are using heat treated Chromoly caps instead of aluminium to be stiff and avoid wobble that can form over time and they are CNC machined outside and inside to achieve almost the same weight. The shell is made of a much stronger 7075 Aluminium and features the sunken spoke holes that we created with our Classic Front Hub. The driver, end caps and nuts use an anti-rust process. Last but not least, we wanted this hub to be as good as it gets, so we are having them manufactured in Europe to achieve the best quality possible."
- Magneto Magnetic Engange System
- 7075-T6 Aluminium Shell with Recessed Spoke Holes Design
- Heat-Treated Chromoly Driver, Caps & Nuts with Anti-Rust Treatment
- Heat-Treated Chromoly Axle, 14 mm
- Internally & Exteranally machined CNC Chromoly Caps
- Hubguards are availalbe separately
- Made in Europe to achieve the best quality possible
- Weight: 475 g
Lacing Info:
Drive Side Flange Diameter: 48 mm / 8 mm Spokes
Drive Side Offset: 29 mm
Non-Drive Side Flange Diameter: 41 mm / 8 mm Spokes
Non-Drive Side Offset: 19 mm
Spoke Lengths:
Magneto Cassette to Lunar Rim: 184 mm Drive Side / 186 mm Non-Drive Side
Magneto Cassette to Lunar X Lace Rim: 188 mm Drive Side / 190 mm Non-Drive Side
