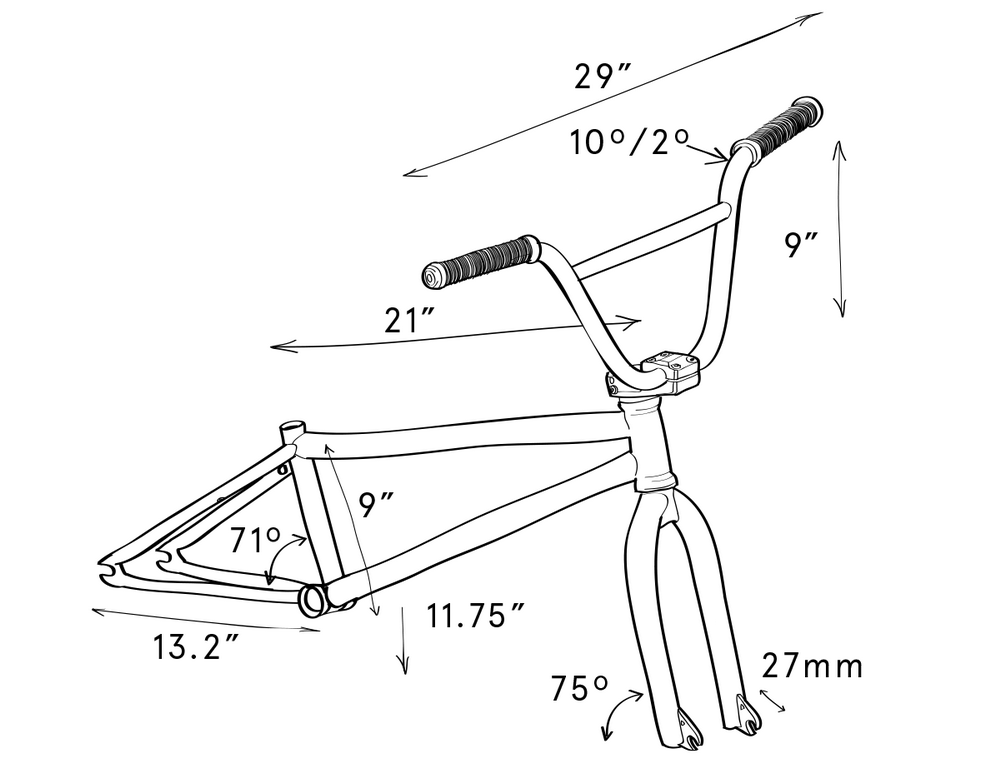

Top Tube Length: 21"
Chainstay Length: 13"
Headtube Angle: 75°
Seattube Angle: 71°
Standover Height: 9.25"
BB Height: 11.75"

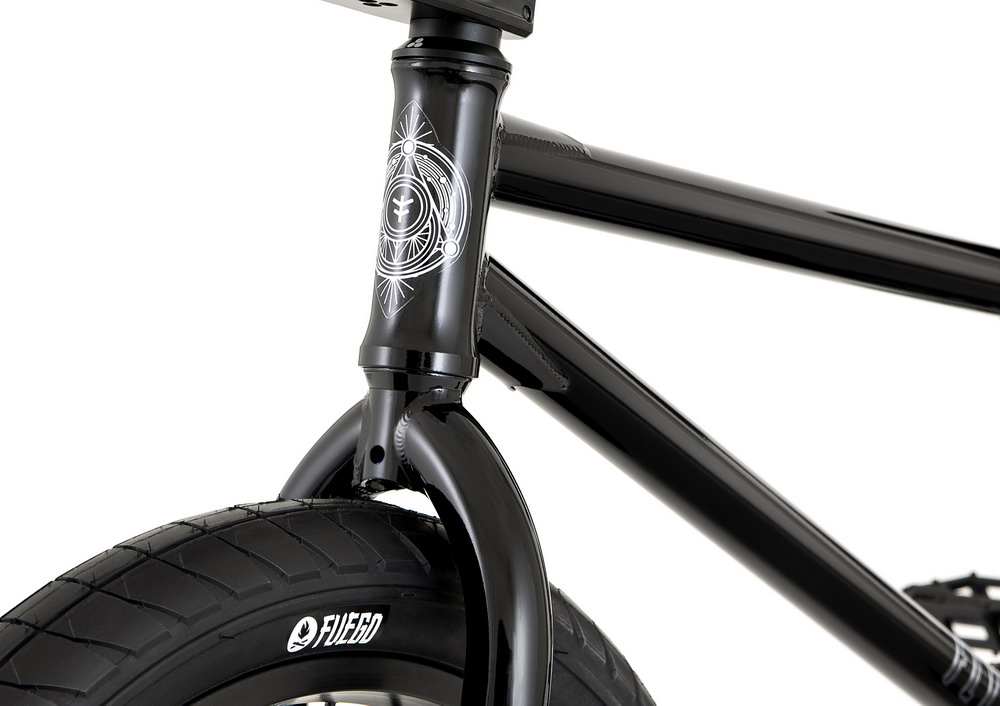

Frame: 100% 4130 Chromoly, removable brake mounts
Fork: 100% 4130 Chromoly, 1-pc steerer tube, 27 mm offset
Bar: 100% 4130 Chromoly, 2-piece, 9" rise, 29" width, 10° back sweep, 2° up sweep
Grips: Flybikes Devon, 160 mm long, Flybikes barends
Stem: Trebol Topload, forged 6061-T6 aluminium, 50 mm reach
Headset: Trebol integrated, sealed bearings
Brake Lever: Trebol, forged 6061-T6 aluminium, right
Brake: Trebol Springhanger, forged 6061-T6 aluminium
Crank: Trebol 3-pc, 4130 Chromoly, 170 mm arm length
Bottom Bracket: Mid BB, sealed bearings
Sprocket: Trebol, CNC machined 6061-T6 aluminium, 25T
Pedals: Flybikes Ruben Graphite, Nylon-Fiberglass compound
Chain: 510, 69 links
Rims: Trebol, double side wall, 6061-T6 aluminium, 36h

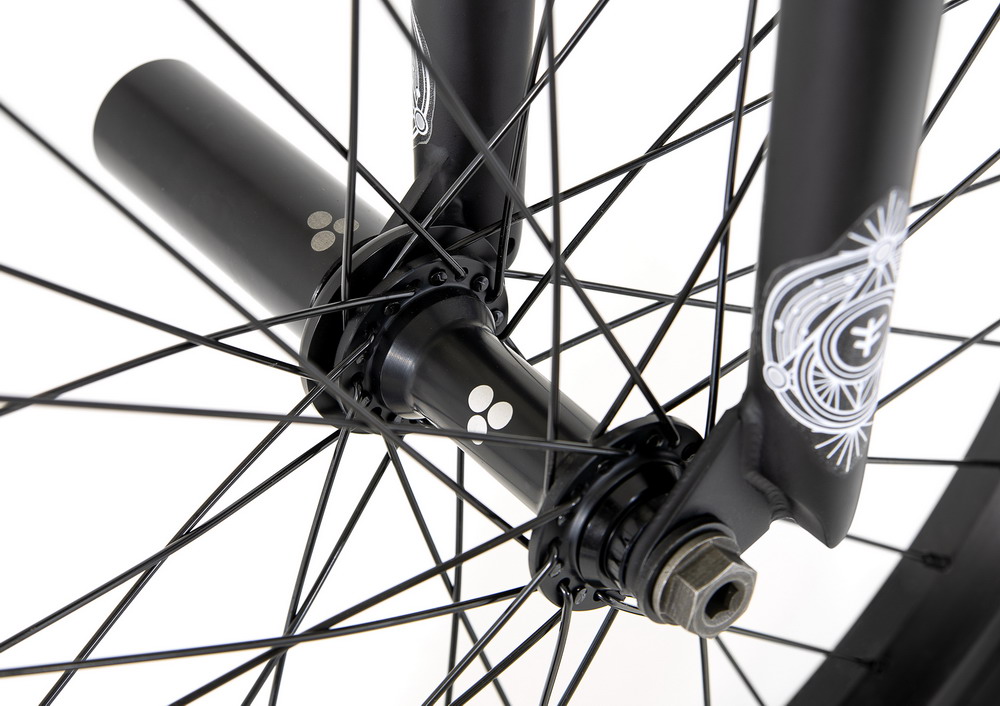

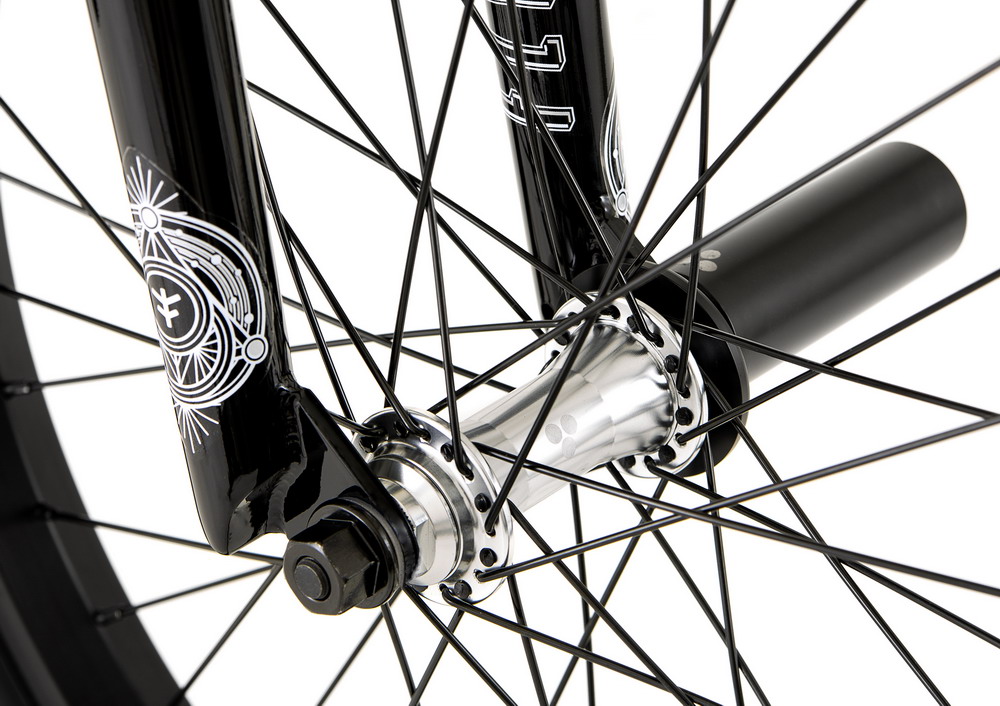

Front Hub: Trebol Bueno, sealed bearings, 10 mm Female axle, 36h, incl. hubguard
Rear Hub: Trebol Cassette, sealed bearings, 14 mm axle, 36h, 9T driver, incl. hubguard
Tires: Flybikes Fuego 20" x 2.3" front and rear, 60tpi casing, max. 120psi (ca. 8.3 bar)

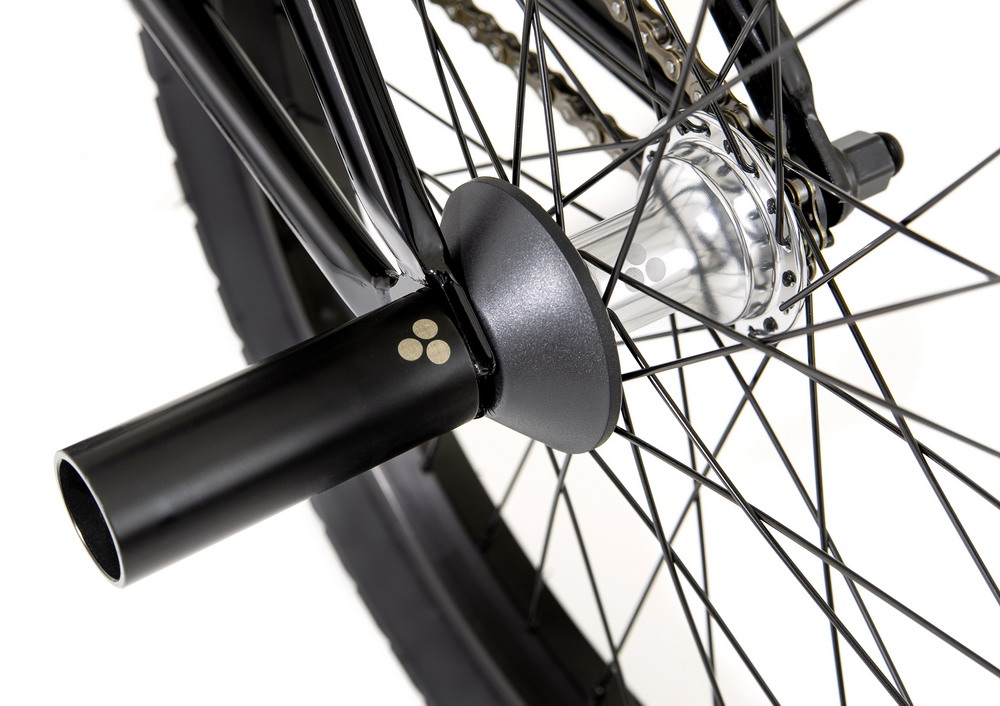

Pegs: Trebol HS steel, 1 pair

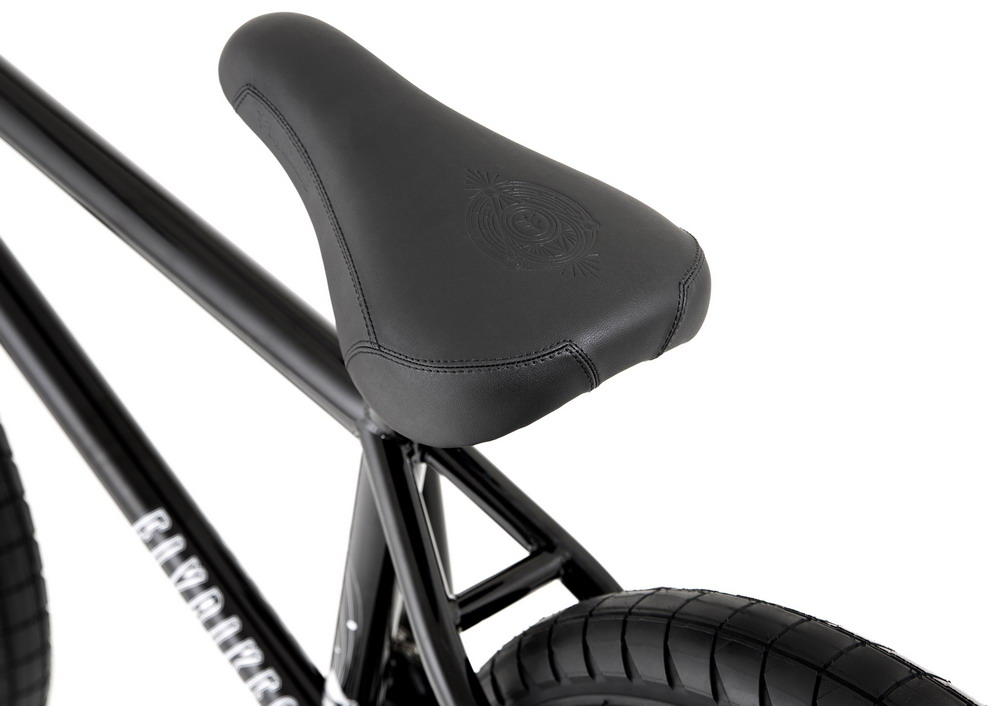

Seat: Flybikes Proton Tripod, 100% synthetic leather, 25 mm thick padding
Seatpost: Trebol Tripod, forged & CNC machined 6061-T6 aluminium, 135 mm length
Seat Clamp: Integrated
Weight: 11.2 kg
