Top Tube Length: 21"
Chainstay Length: 13.2"
Headtube Angle: 75°
Seattube Angle: 71°
Standover Height: 9"
BB Height: 11.5"
Frame: 4130 Chromoly down tube / 1020 Hi-Ten steel, welded brake mounts
Fork: 4130 Chromoly 1-pc steerer tube, 1020 Hi-Ten legs, 27 mm offset
Bar: 1020 Hi-Ten, 8.75" rise, 29" width, 10° back sweep, 2° up sweep
Grips: Flybikes Devon, 160 mm long, Flybikes barends
Stem: Trebol Topload, forged 6061-T6 aluminium, 50 mm reach
Headset: Trebol integrated, sealed bearings
Brake Lever: die cast aluminium, right

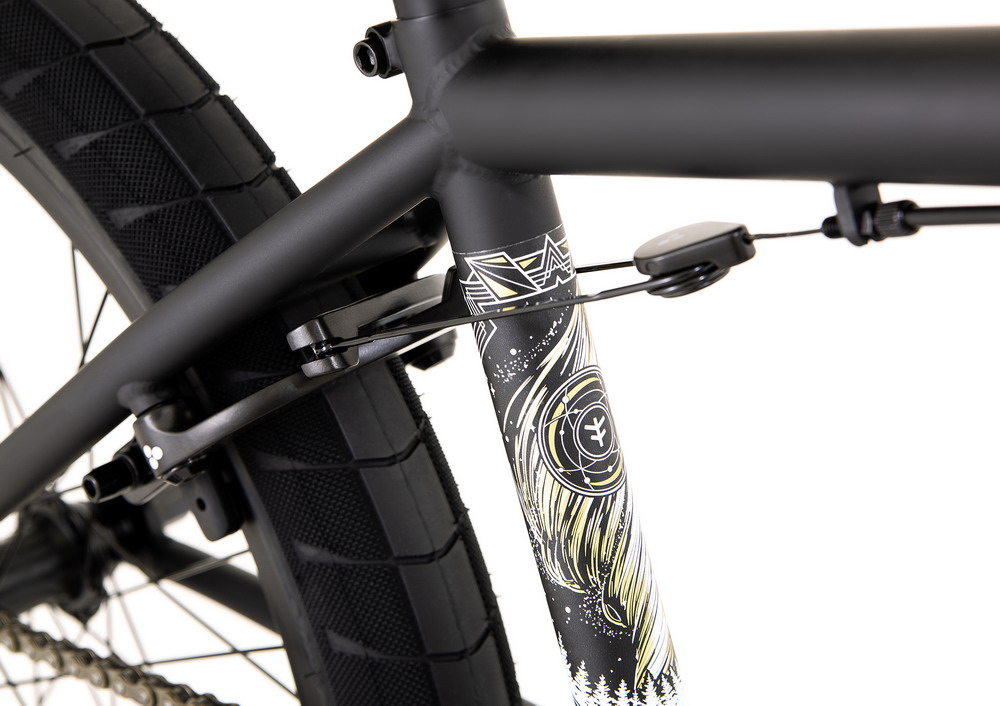

Brake: Trebol Springhanger, forged 6061-T6 aluminium
Crank: Trebol 3-pc, 4130 Chromoly, 170 mm arm length
Bottom Bracket: Mid BB, sealed bearings
Sprocket: Trebol, CNC machined 6061-T6 aluminium, 25T

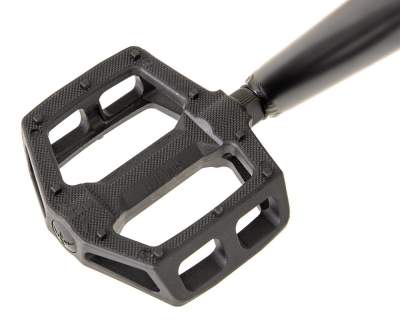

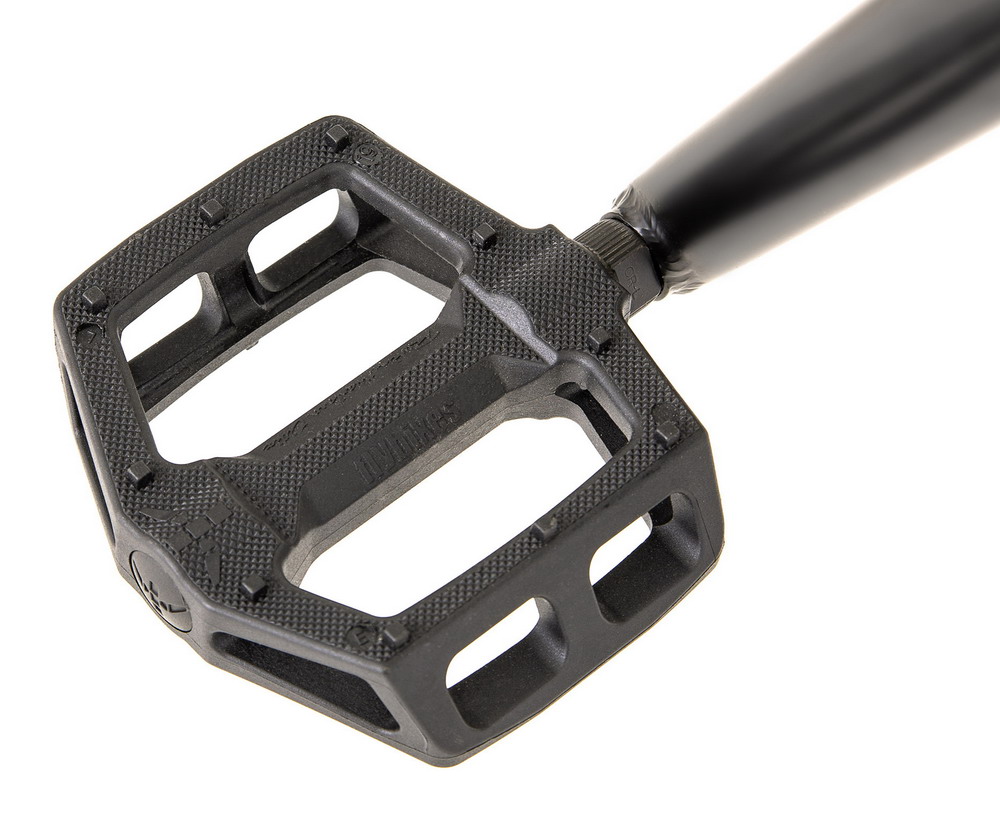

Pedals: Flybikes Ruben Graphite, Nylon-Fiberglass compound
Chain: 510, 70 links
Rims: Trebol, double side wall, 6061-T6 aluminium, 36h
Front Hub: alloy shell, loose ball, 10 mm axle, 36h

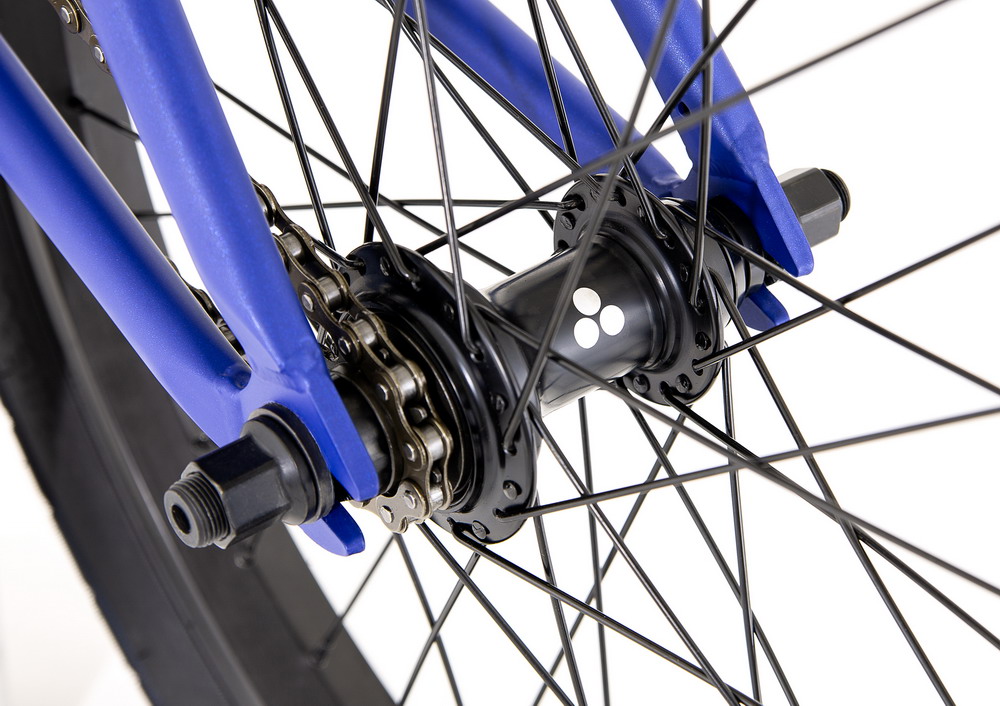

Rear Hub: Trebol Cassette, sealed bearing, 14 mm axle, 36h, 9T driver

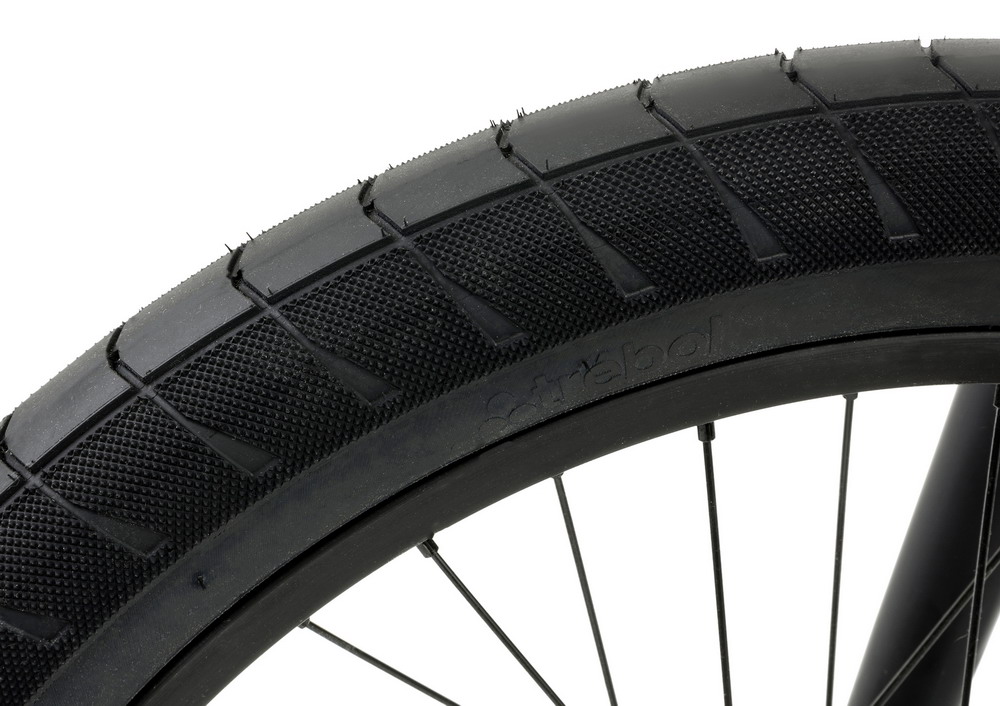

Tires: Trebol 20" x 2.35" front and rear, 60tpi casing, max. 65psi (ca. 4.5 bar)

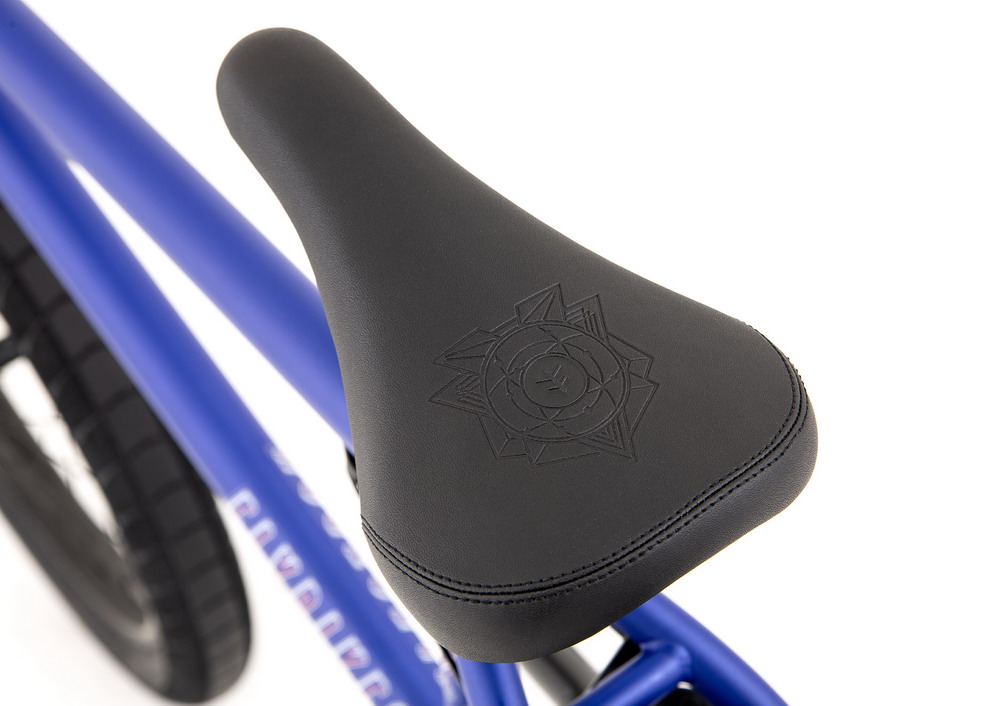

Seat: Electron Seat-Combo, 100% synthetic leather, 25 mm thick padding
Seat Clamp: Integrated
Weight: 11.5 kg
