From the frame/fork to the parts and the paint, every detail of our STR v7 is street specific. The frame geometry features a short rear end, a taller stand over and a steeper head angle. The brake mounts and cable guide are removable, and the forks feature a short 25mm offset and peg cuts. Our 2.4 F/U tires and double wall rear wheel allow riders to run lower tire pressure. Four piece bars, flangeless CrossFIT grips and four metal pegs are a few other recognizable street components. With two top tube sizes to choose from, both in very straight forward color options, our STR models are ready to answer the call when the Streets Are Shouting.
Geometry
Top Tube Length: 20.5"
Rear End Length: 12.6"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
BB Height: 11.8"
Standover: 8.8"
Frame: Chromoly top, down and head tube, Double Gussets
Fork: Chromoly Steerer Tube, 25 mm Offset , Tapered Legs

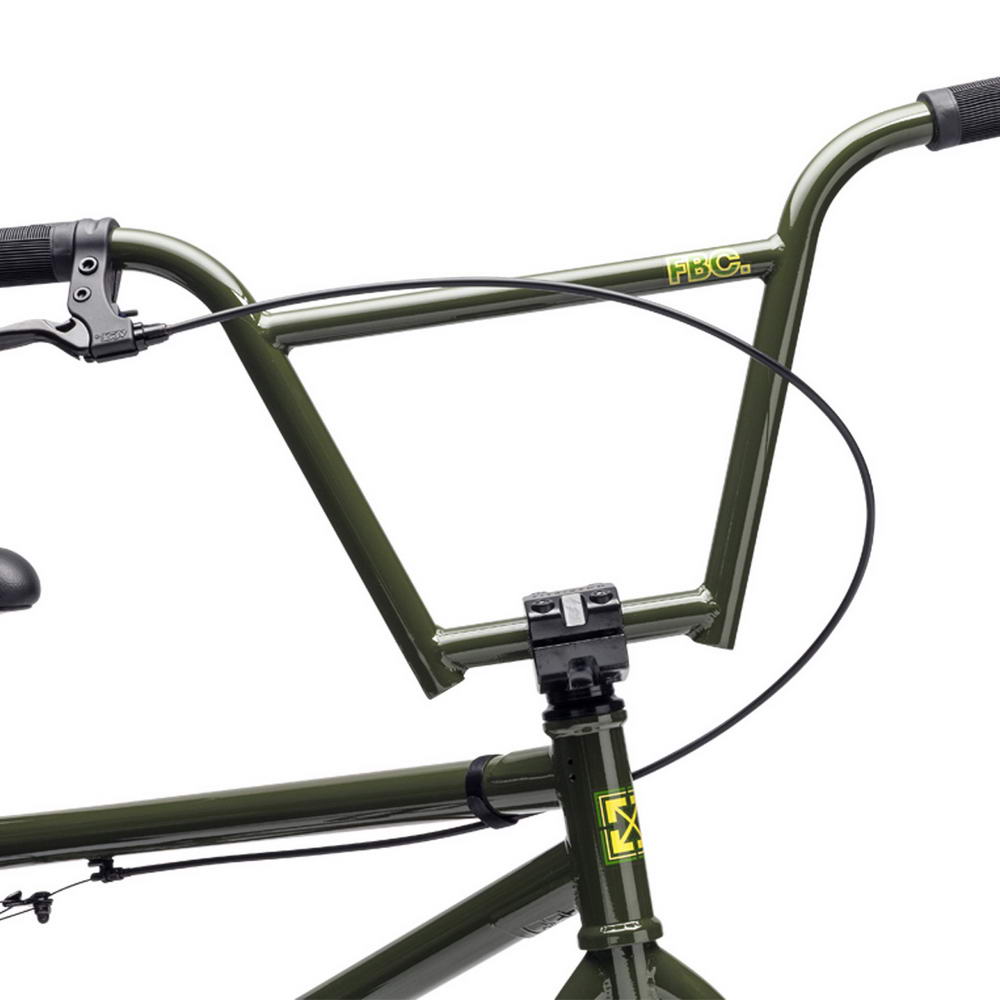

Bar: 4-piece, 9" rise, 29" width, 12° back sweep, 3° up sweep
Stem: FIT Forged Top Load, 50 mm reach
Headset: Integrated with Gyro Holes
Brake Mounts: thread-on
Rear Brake: U-Brake with Low Tension Spring
Brake Lever: 2-finger
Brake Cable: Linear
Gearing: 25/9 RHD

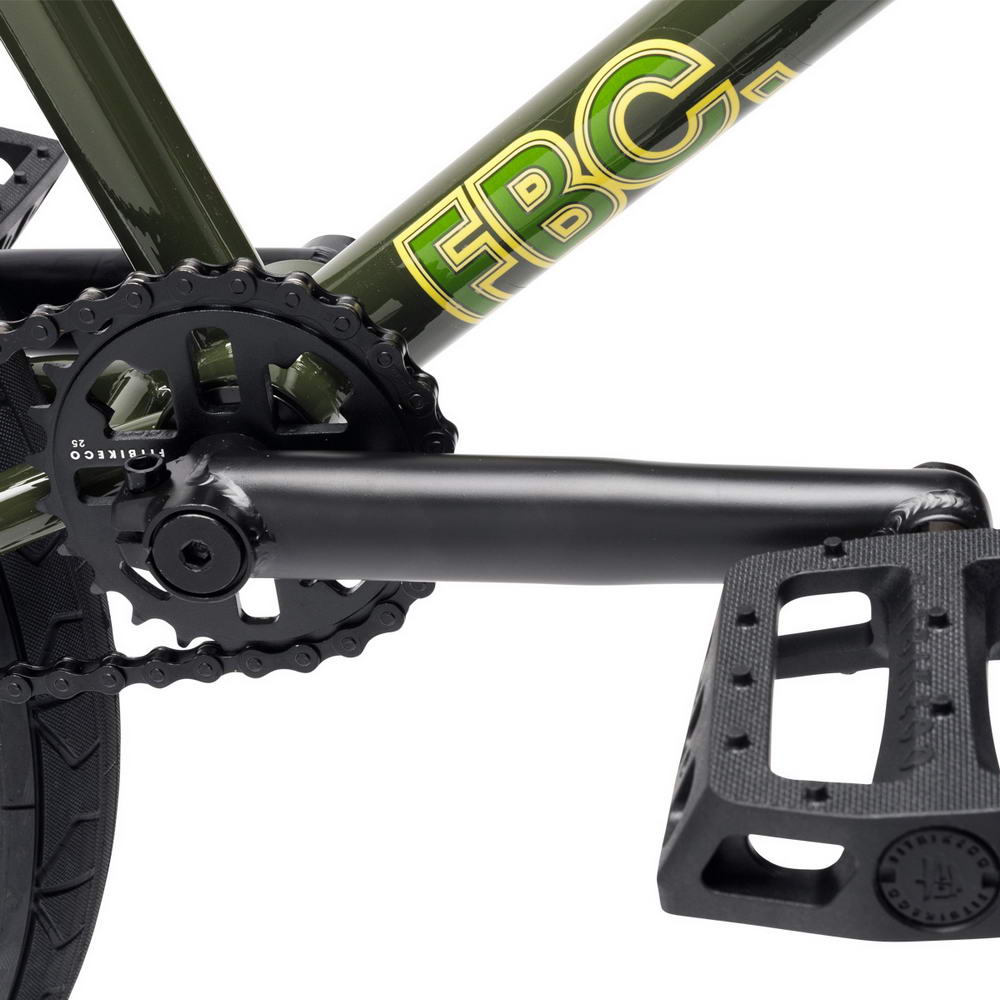

Cranks: Tubular Chromoly, 165 mm length, RHD
Bottom Bracket: Mid, sealed bearing
Sprocket: Fit Key 25T
Pedals: Fit PC
Front Hub: sealed bearings, 10 mm axle
Rear Hub: Cassette, sealed bearings, 14 mm axle, RHD, 17 mm nuts
Front Rim: FIT S1W, 36H, single wall, alloy
Rear Rim: FIT OEM Double Wall, 36H, alloy
Tires: FIT F/U 20" x 2.4"
Seat: FIT Pivotal Seat
Seatpost: FIT 200mm Pivotal Post
Seat Clamp: integrated
Pegs: 4x 100 mm steel pegs
Weight: 12.56 kg
