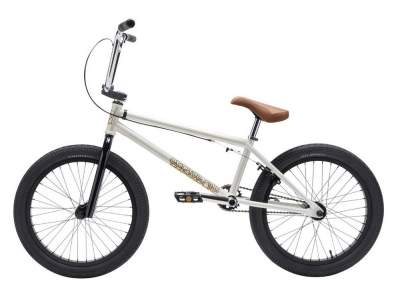

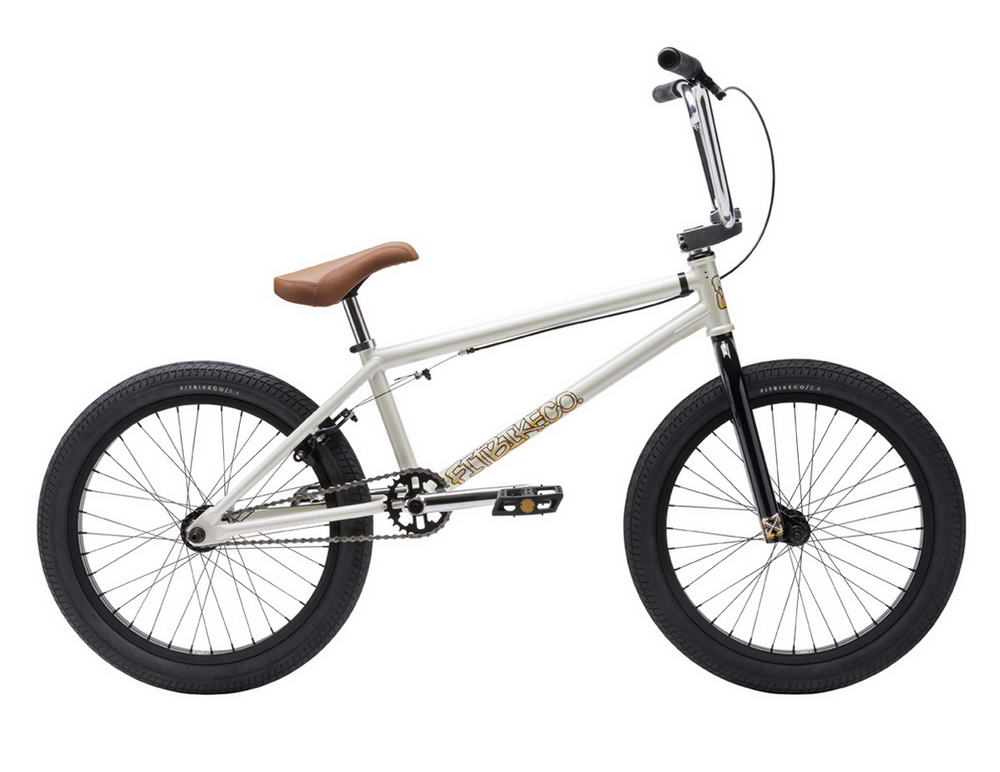

BMX-Bike Fit Series One v4 20.75"

Product No.:: 116693
Shipping time:: on request (abroad may vary)
will be shipped after release
Stock:: - pieces

color:

UVP 629,95 EUR
629,95 EUR per Stk.

incl. 19% tax excl. Shipping costs

Add to wish list

Description

Description

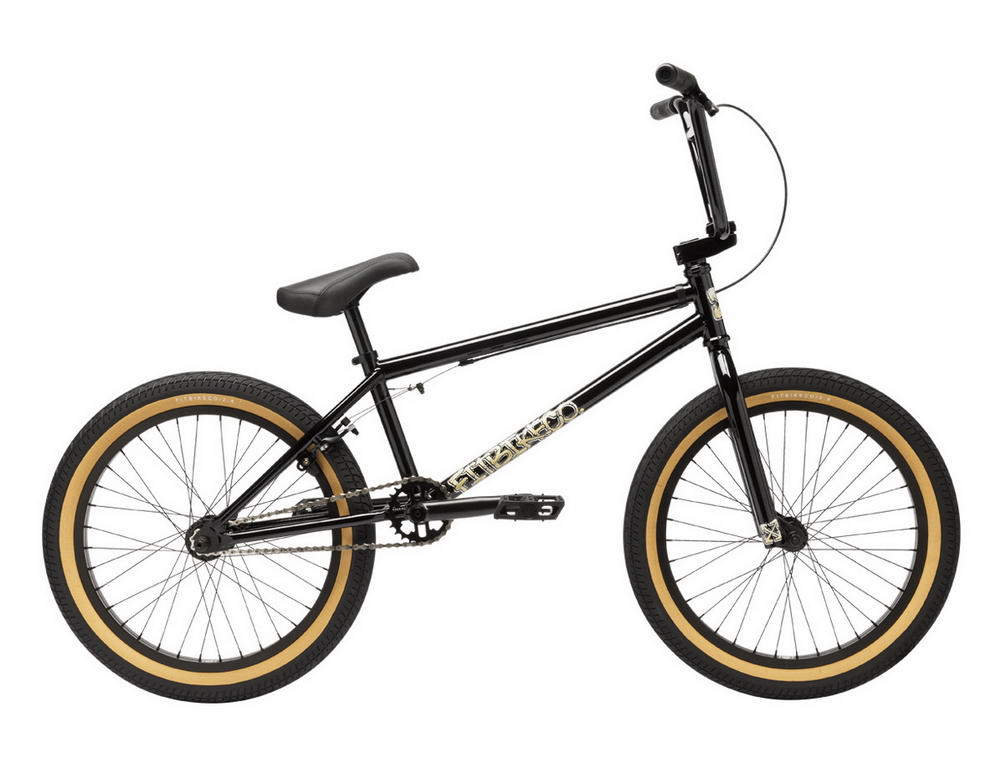

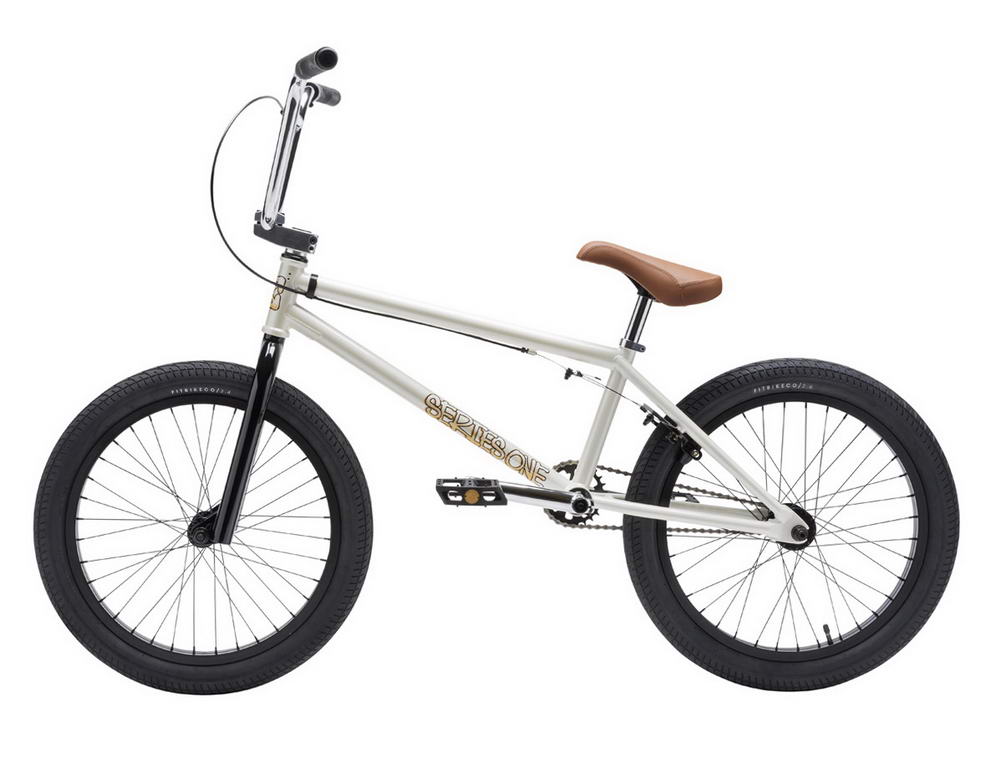

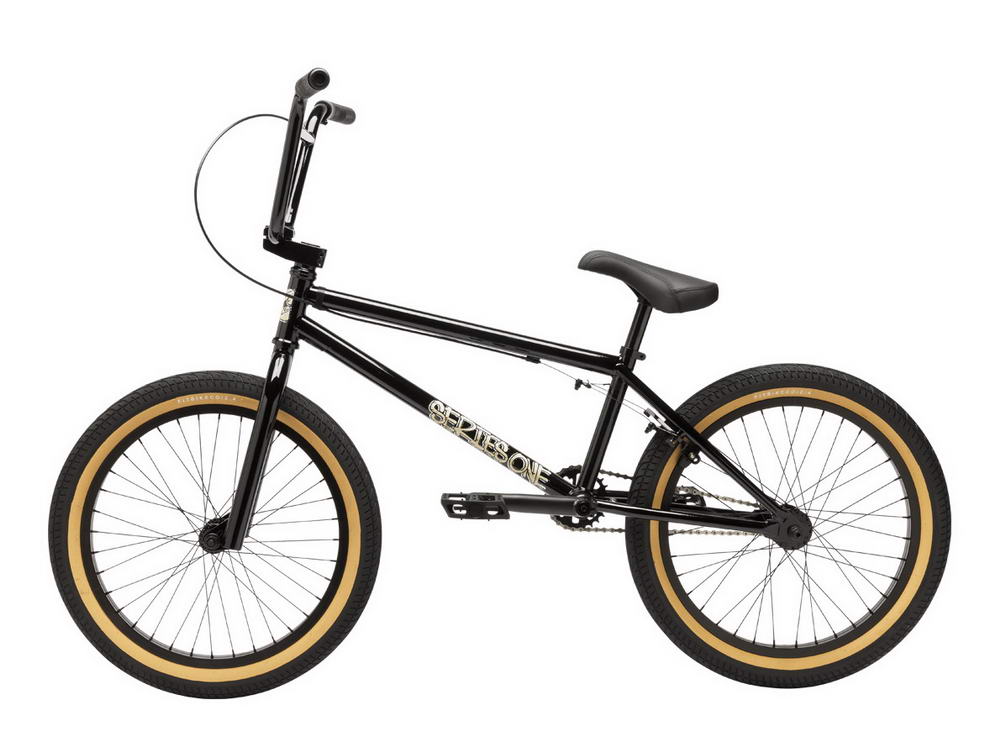

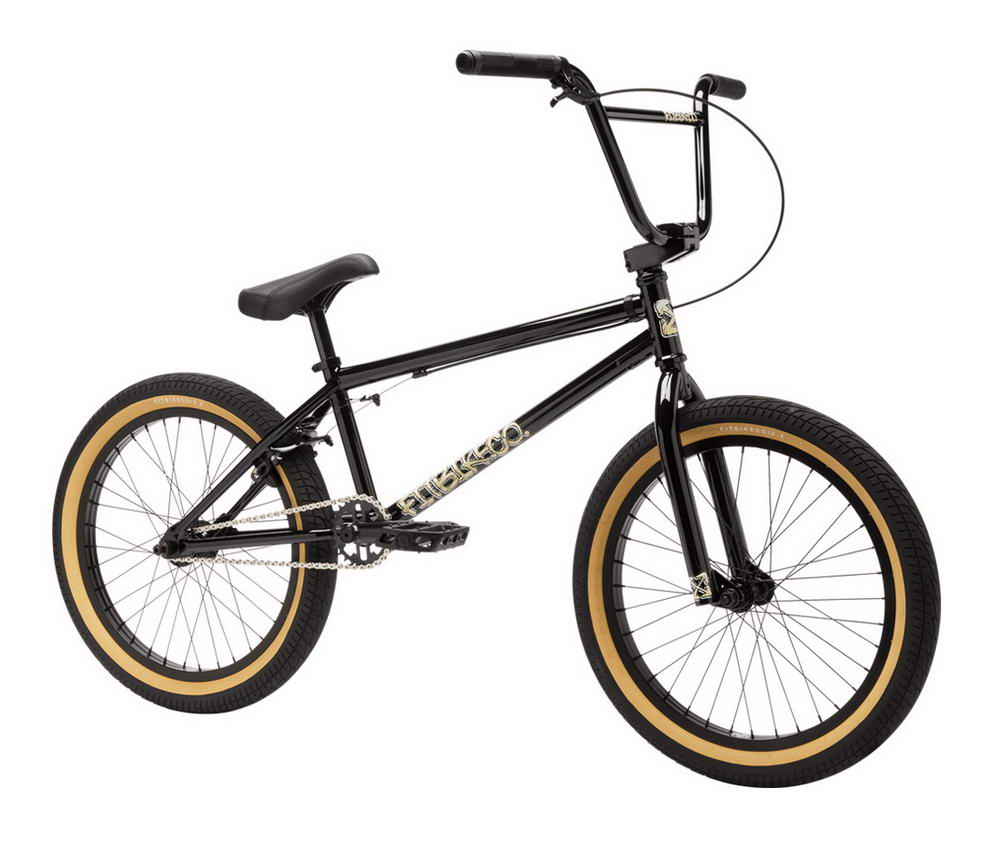

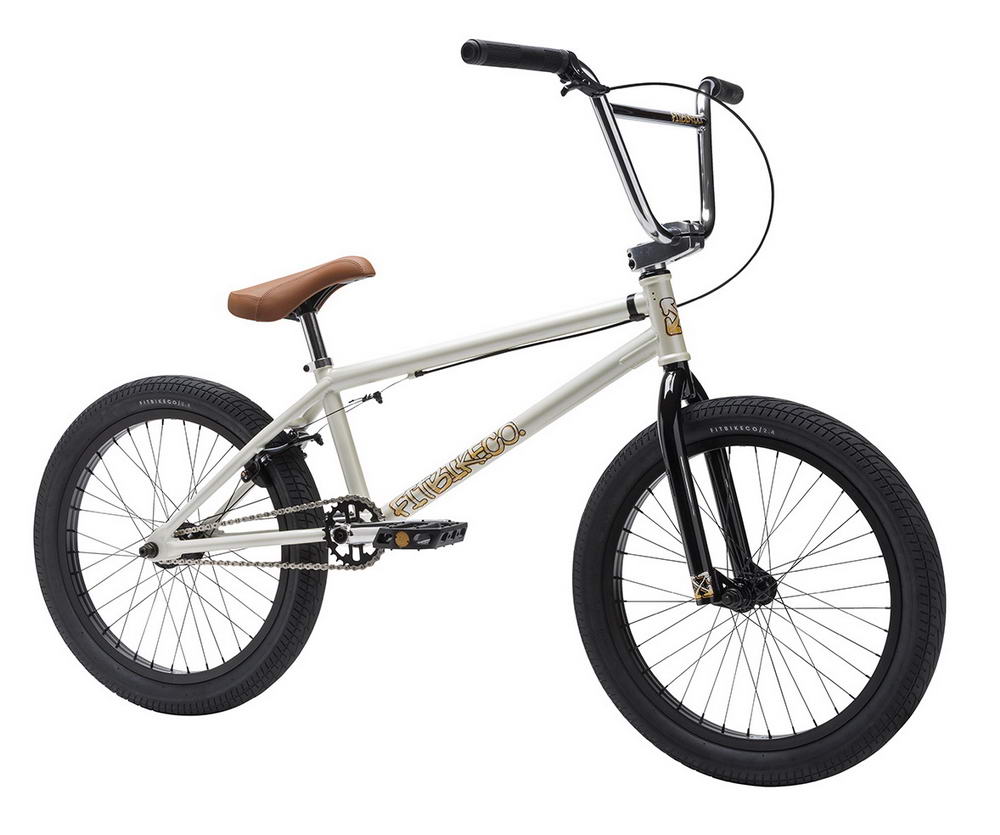

The Series One was our first frame when we started FIT back in 2000 and it’s our most popular bike to date. For 2026 we’ve upgraded to a CNC machined Integrated headtube and a fully sealed bearing front hub. The S1 frame and fork has been lightened up and offered in 3 top tube sizes with corresponding handlebar and crank sizes.

Geometry
Top Tube Length: 20.75"
Rear End Length: 13.11"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
BB Height: 11.8"
Standover: 8.8"

Frame: Chromoly top, seat and down tube
Fork: Chromoly Steerer Tube, 33 mm Offset
Bar: 9" rise, 29" width, 2-piece

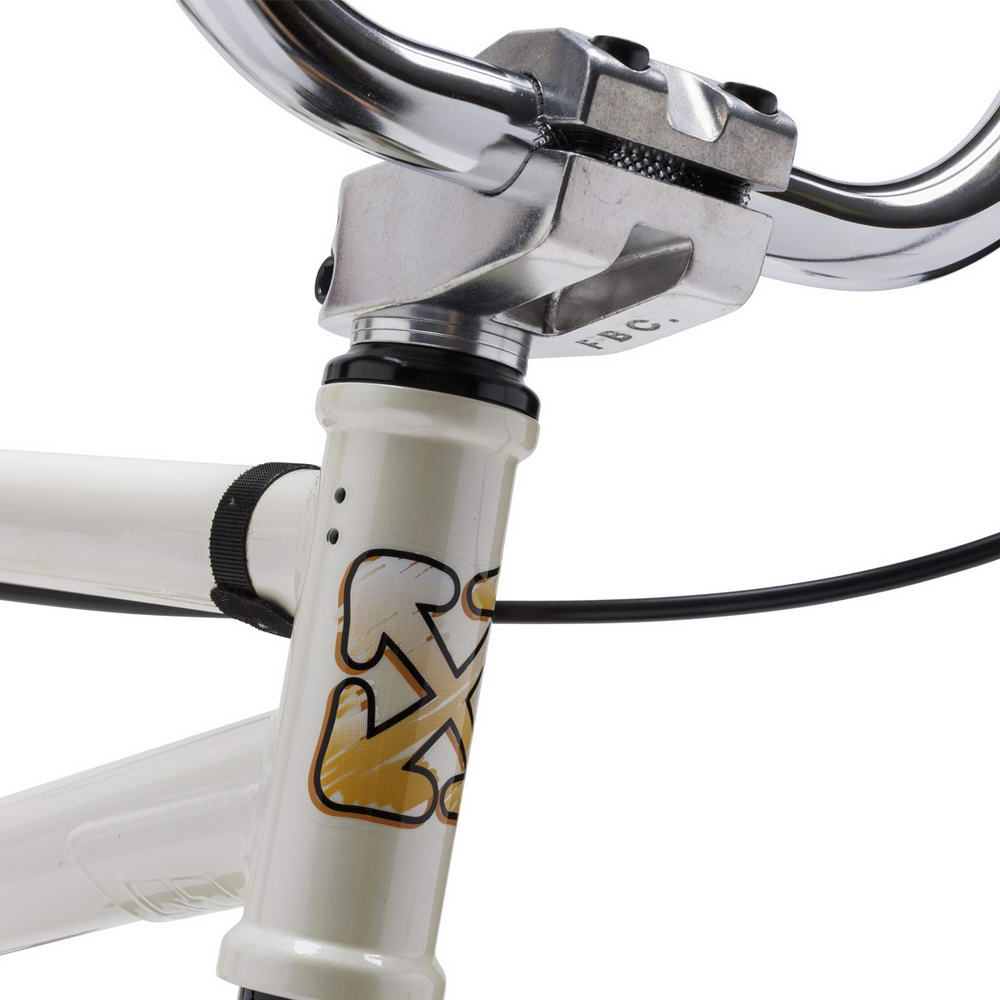

Stem: FIT Forged Top Load, 50 mm reach
Headset: Integrated with Gyro Holes
Brake Mounts: Welded
Rear Brake: U-Brake with low tension springs
Brake Lever: 2-finger
Brake Cable: Linear
Gearing: 25/9 RHD

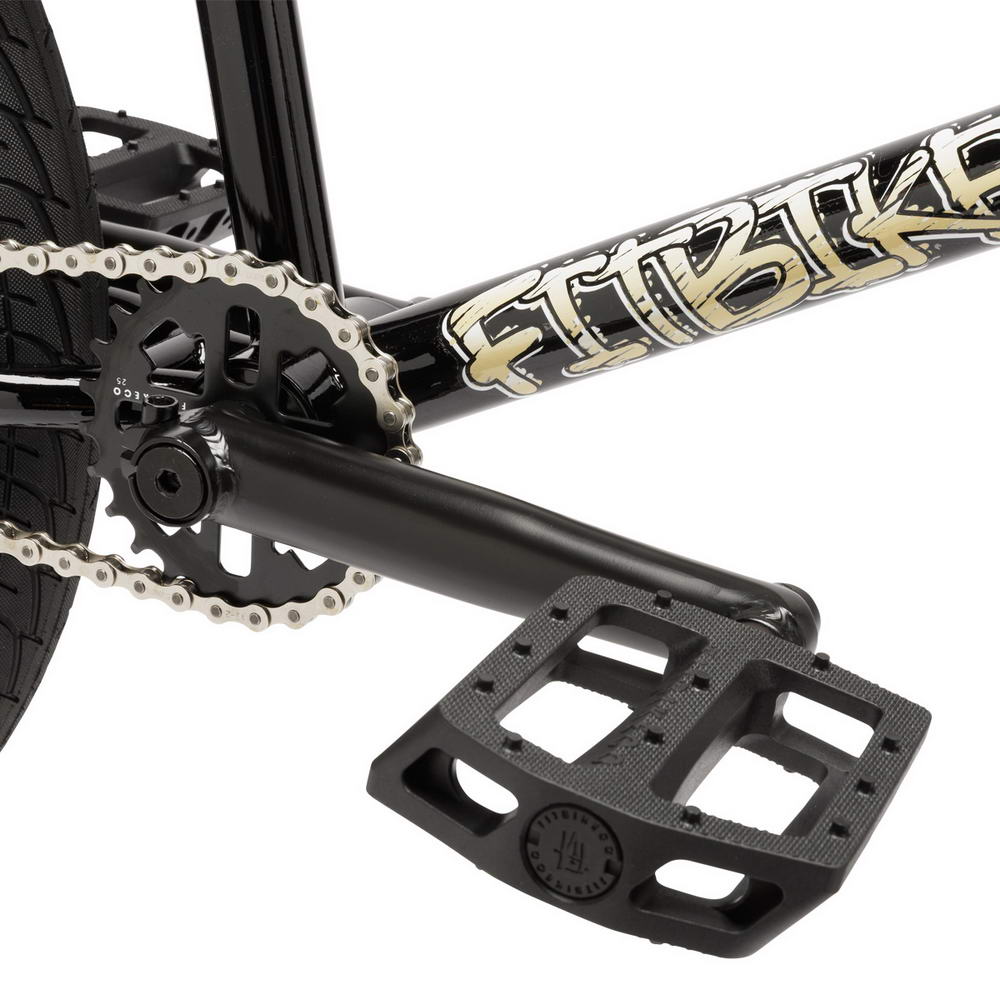

Cranks: Tubular Chromoly, 170 mm length, RHD
Bottom Bracket: Mid, sealed bearing
Sprocket: Fit Key 25T
Pedals: Fit PC
Front Hub: sealed, 10 mm axle
Rear Hub: Cassette, sealed bearings, 14 mm axle, RHD, 17 mm nuts
Rims: FIT S1W, 36H, single wall, alloy
Tires: FIT OEM 20" x 2.4"

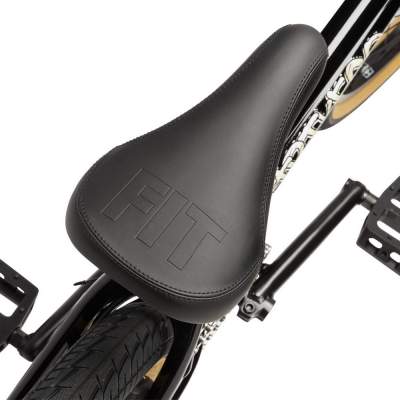

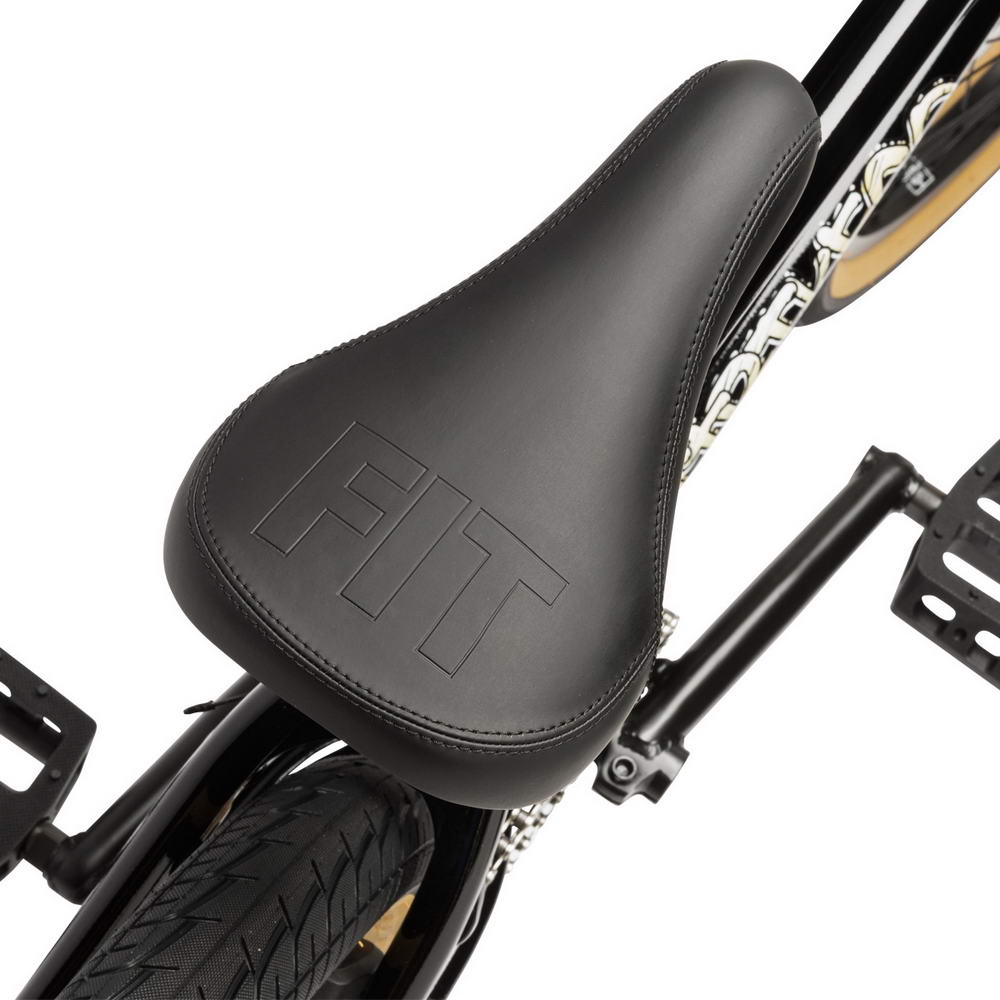

Seat: Seat/Post Combo
Seat Post: 220mm Seat/Post Combo, 25.4 mm diameter
Seat Clamp: alloy, 28.6 mm inner diameter
Weight: 12.24 kg

This product is expected to be in stock again on Monday, 27. October 2025
